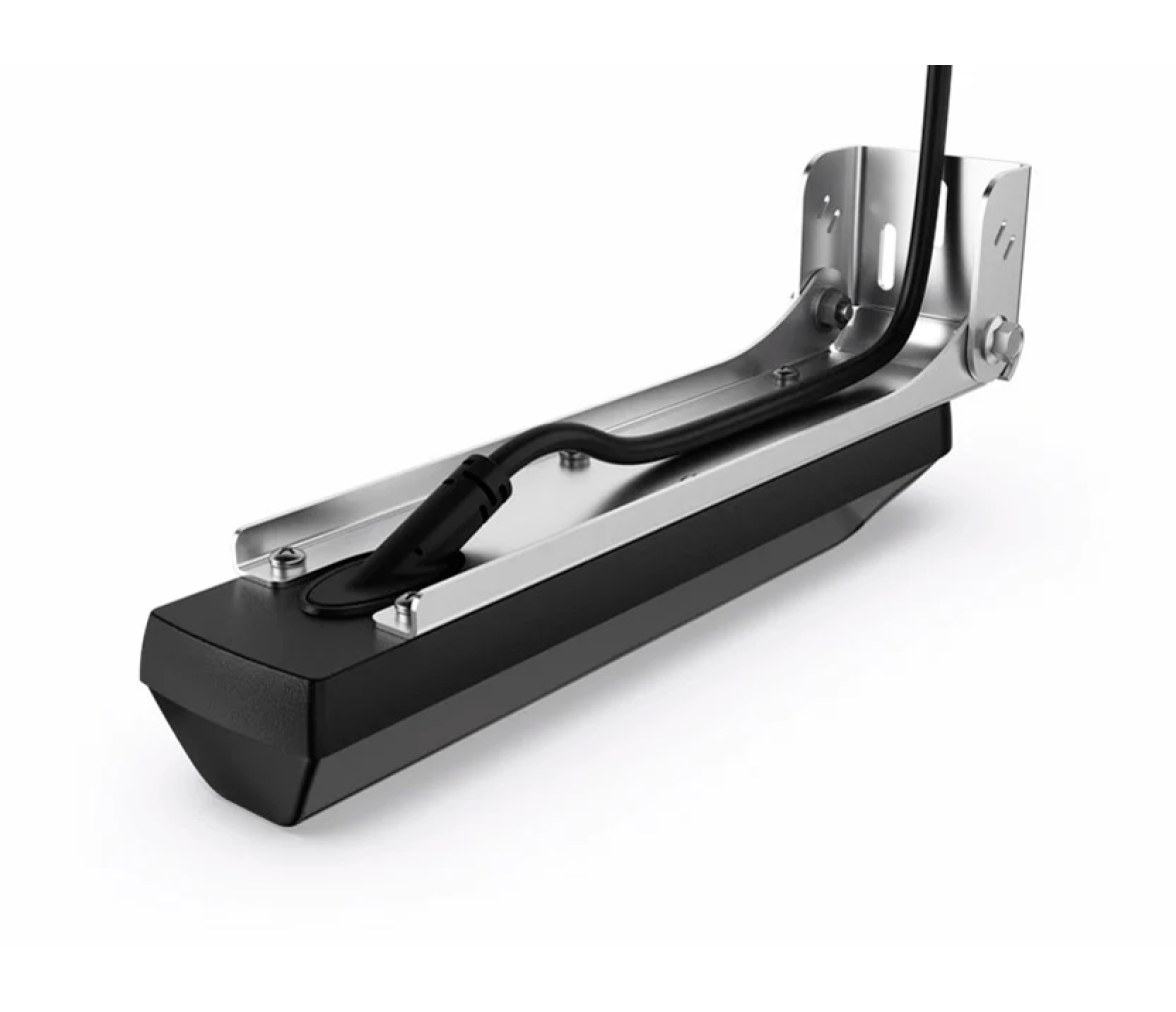

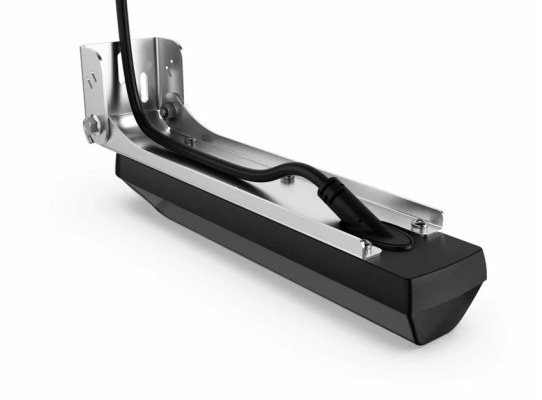

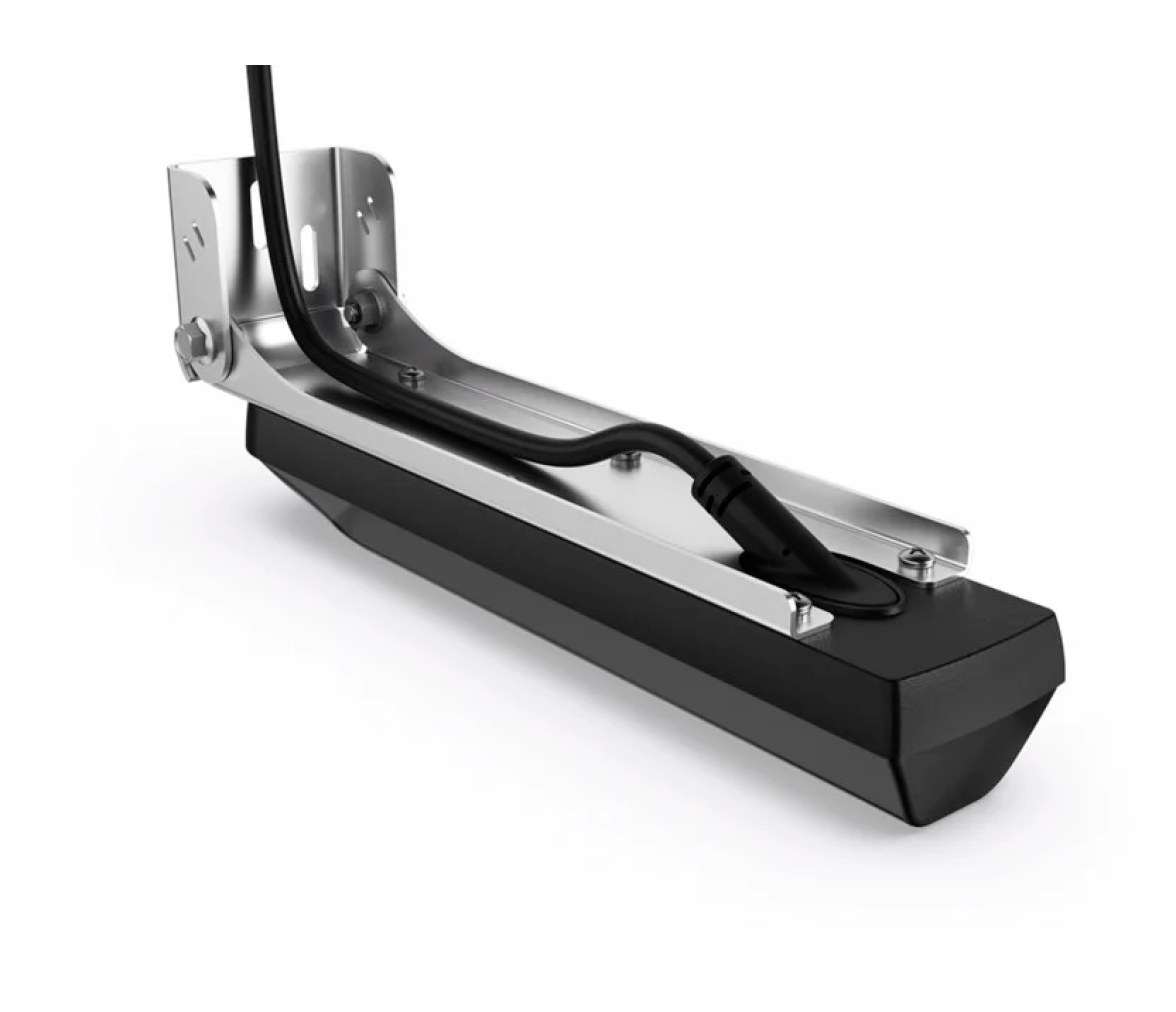

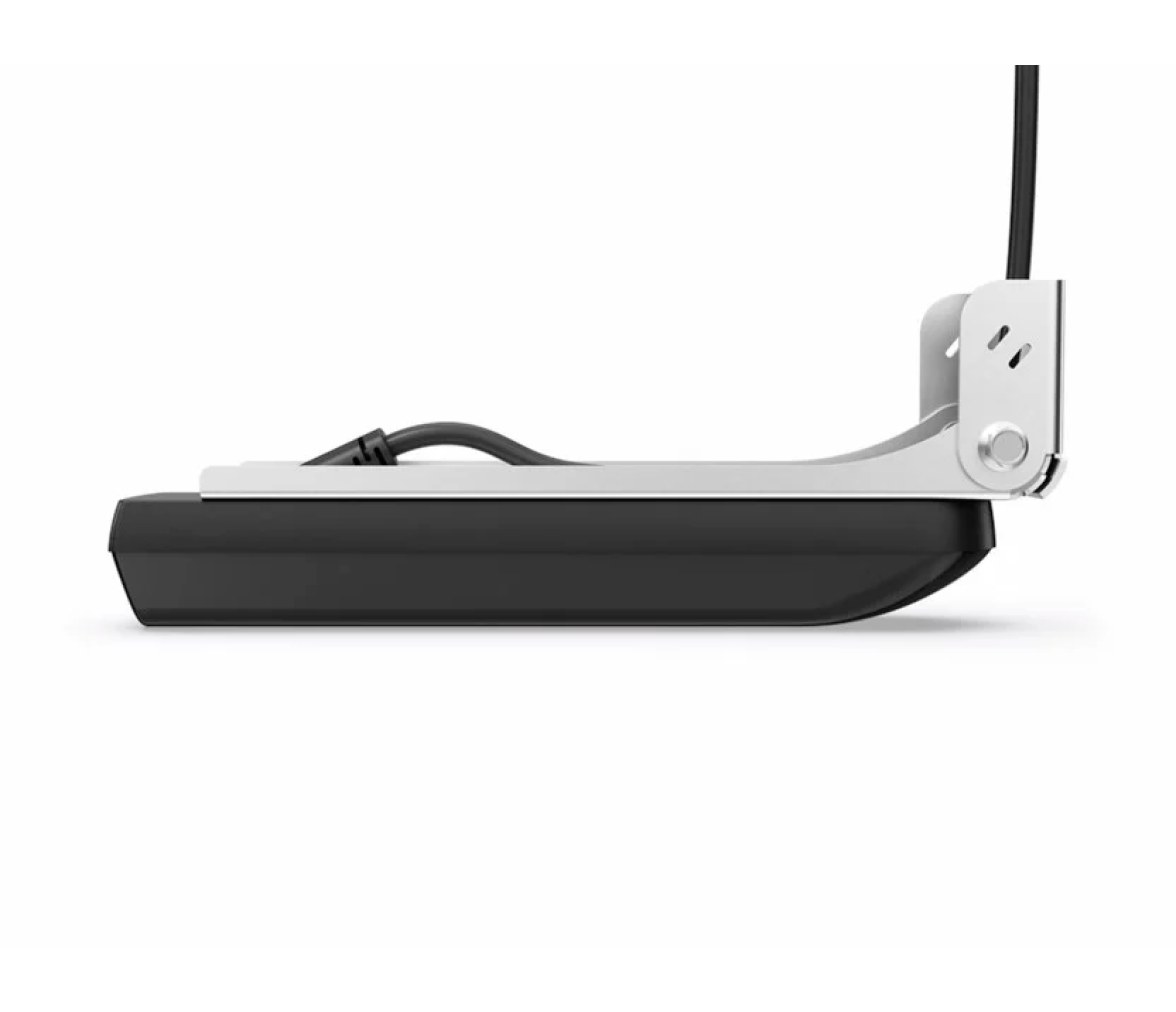

● Active Imaging HD 3-in-1 (Medium/High) - SideScan Fish Reveal
● Step up to ultimate clarity with the new high-definition 3-in-1 Active Imaging HD transducer.
● Get clearer images of both fish and structure with Lowrance CHIRP sonar, as well as high-frequency SideScan and DownScan Imaging (up to 1.2MHz) and FishReveal SideScan view for easy fish identification .
* S3100 sonar module is required for SideScan with FishReveal

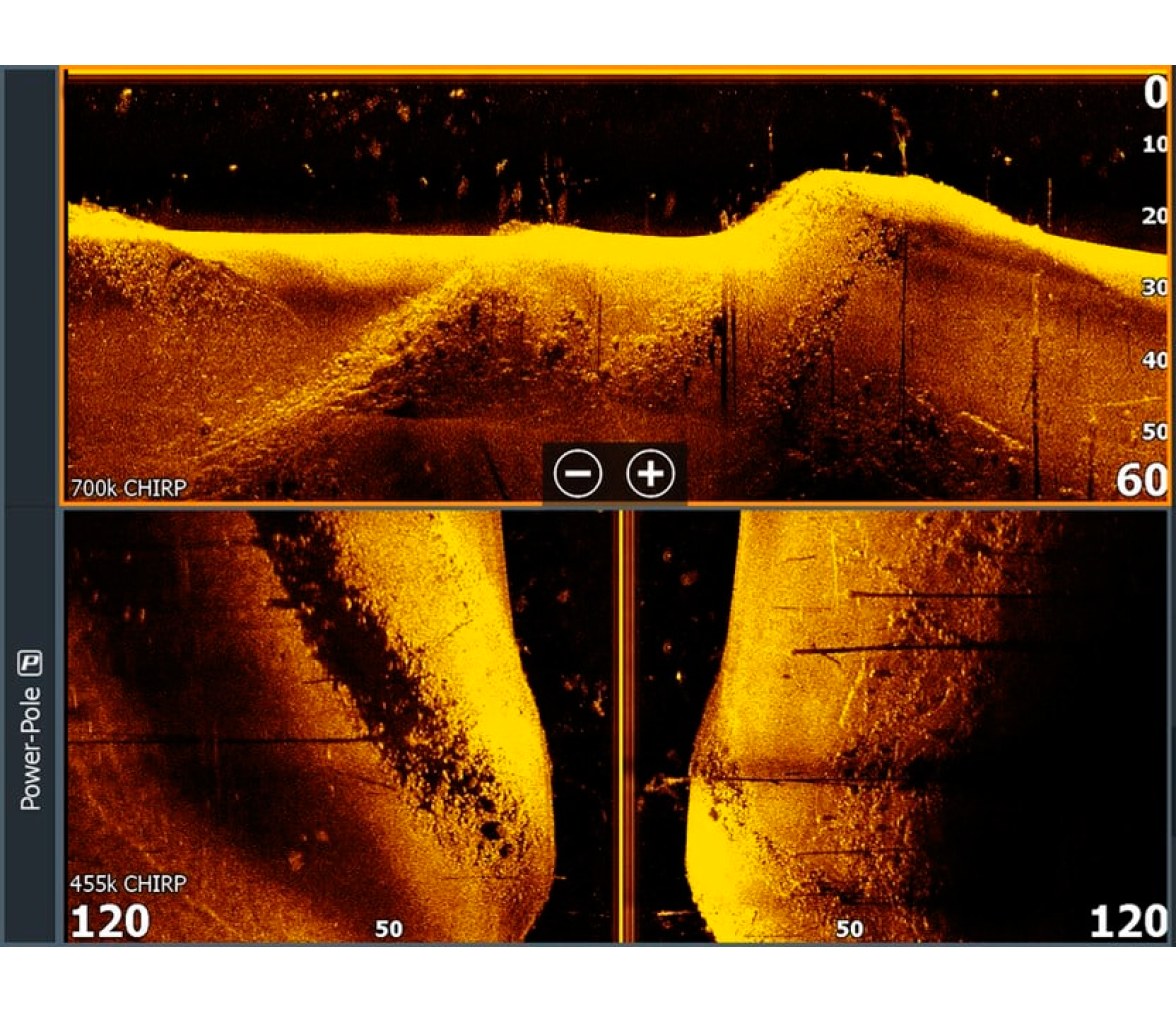

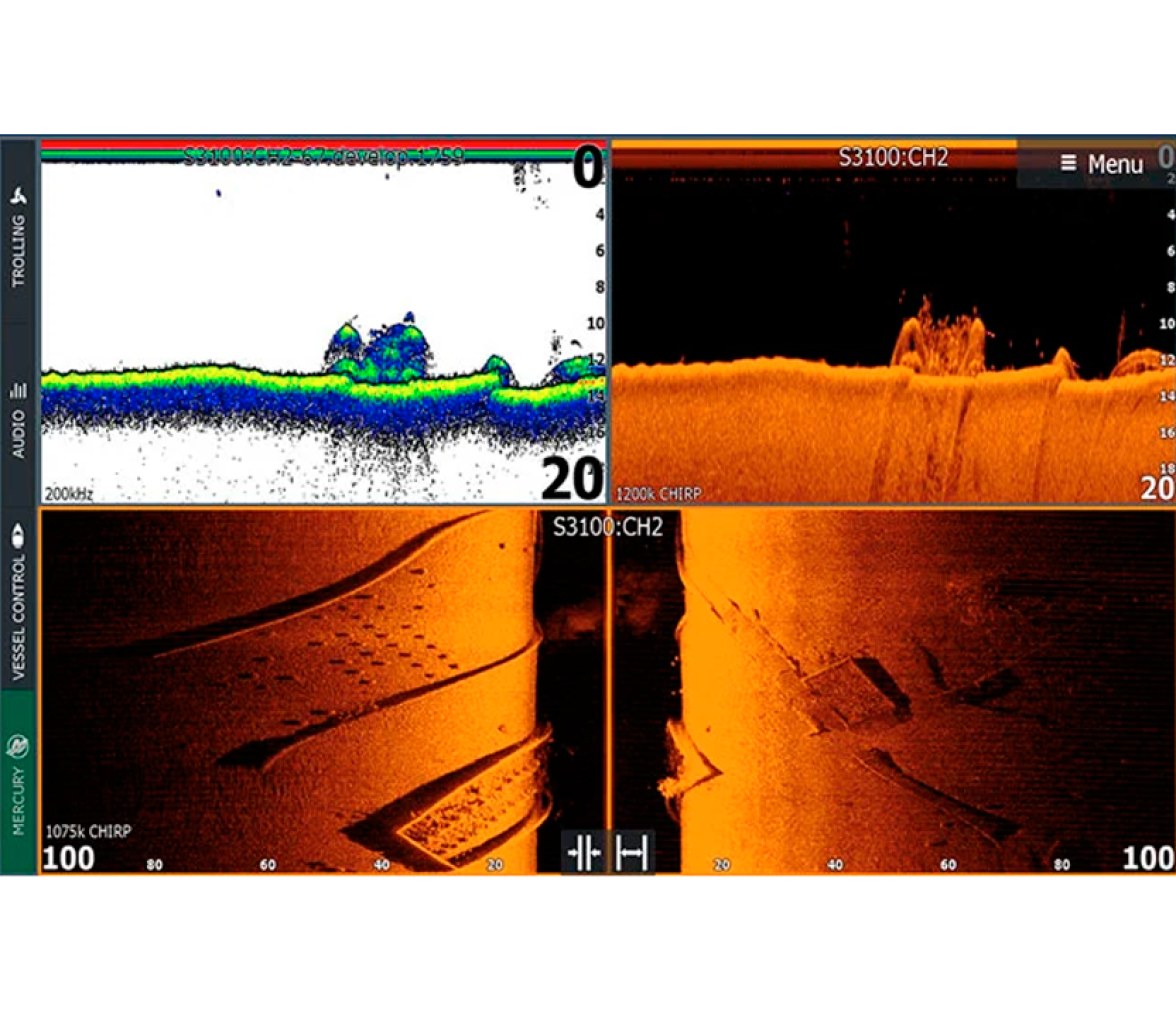

● SideScan and DownScan Imaging, with high definition up to 1.2MHz, offer the sharpest images of fish and structure
● Lowrance's high/wide CHIRP sonar offers exceptional sharpness and target separation with a larger coverage area
● FishReveal with a new SideScan view*, in addition to DownScan
● Supports Wide CHIRP (200kHz) and 455/700/1000/1200 KHz frequencies
● Intelligent transducer design increases signal clarity
*Compatible directly with Lowrance HDS® PRO or with an S3100 module with HDS® LIVE, HDS® and Elite FS
Environment
● Waterproof grade: IP67
● Humidity: 60°C, 95% relative humidity (RH) for 18 hours
● Storage temperature range: -22°F to 158°F (-30°C to 70°C)
● Operating temperature range: 5°F to 131°F (-15°C to 55°C )
● Shock vibration: 100,000 cycles of 20 G
Physical characteristics
● Dimensions (W x H x D): 149.8 x 82.4 x 58.0 mm
● Transducer Weight: 1.21 kg
● Mounting type: Mounting bracket
● Installation: Transom
● CHIRP Sonar: High/Wide
● SideScan Imaging support: HD sidescan with FishReveal
Others
● Interface: Direct connection to; HDS ProS3100Ehternet to:*HDS Live* Elite FS* Requires S3100 module
● Warranty period: 1 year + additional 4 years of 5-year total upgrade options
