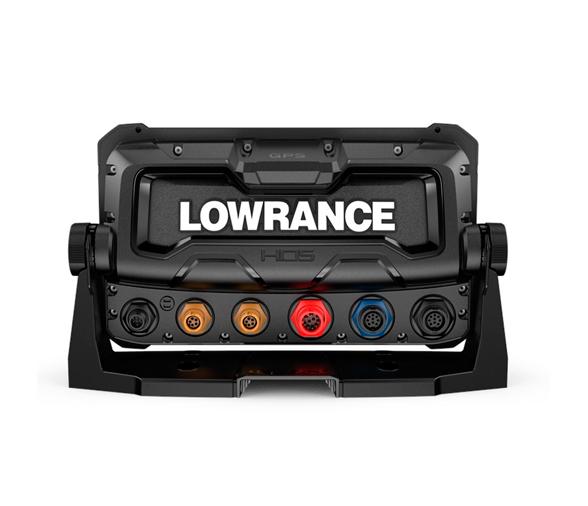

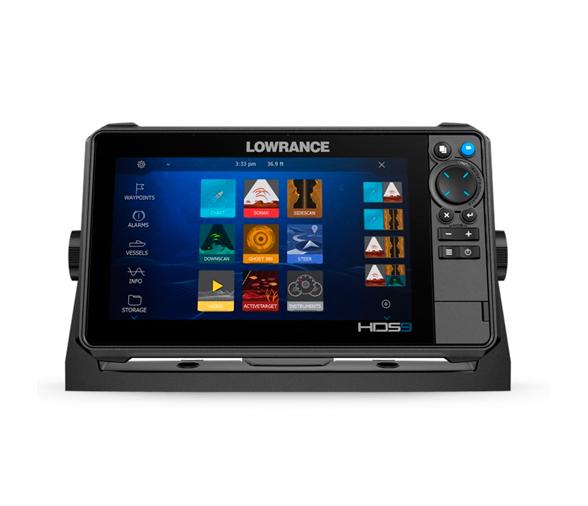

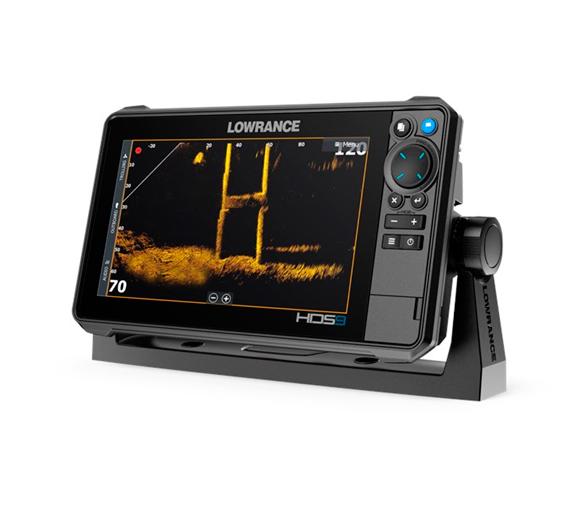

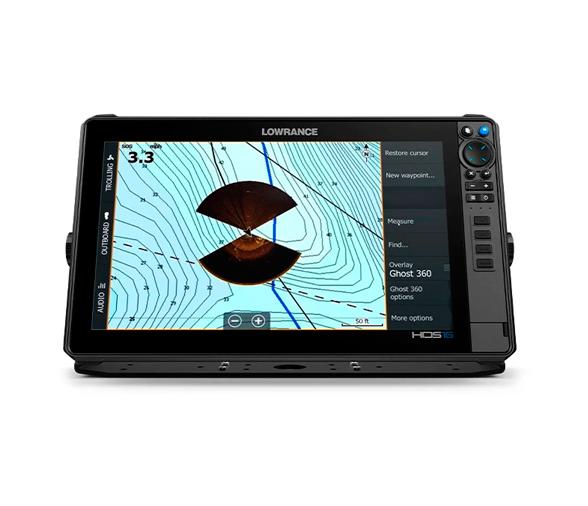

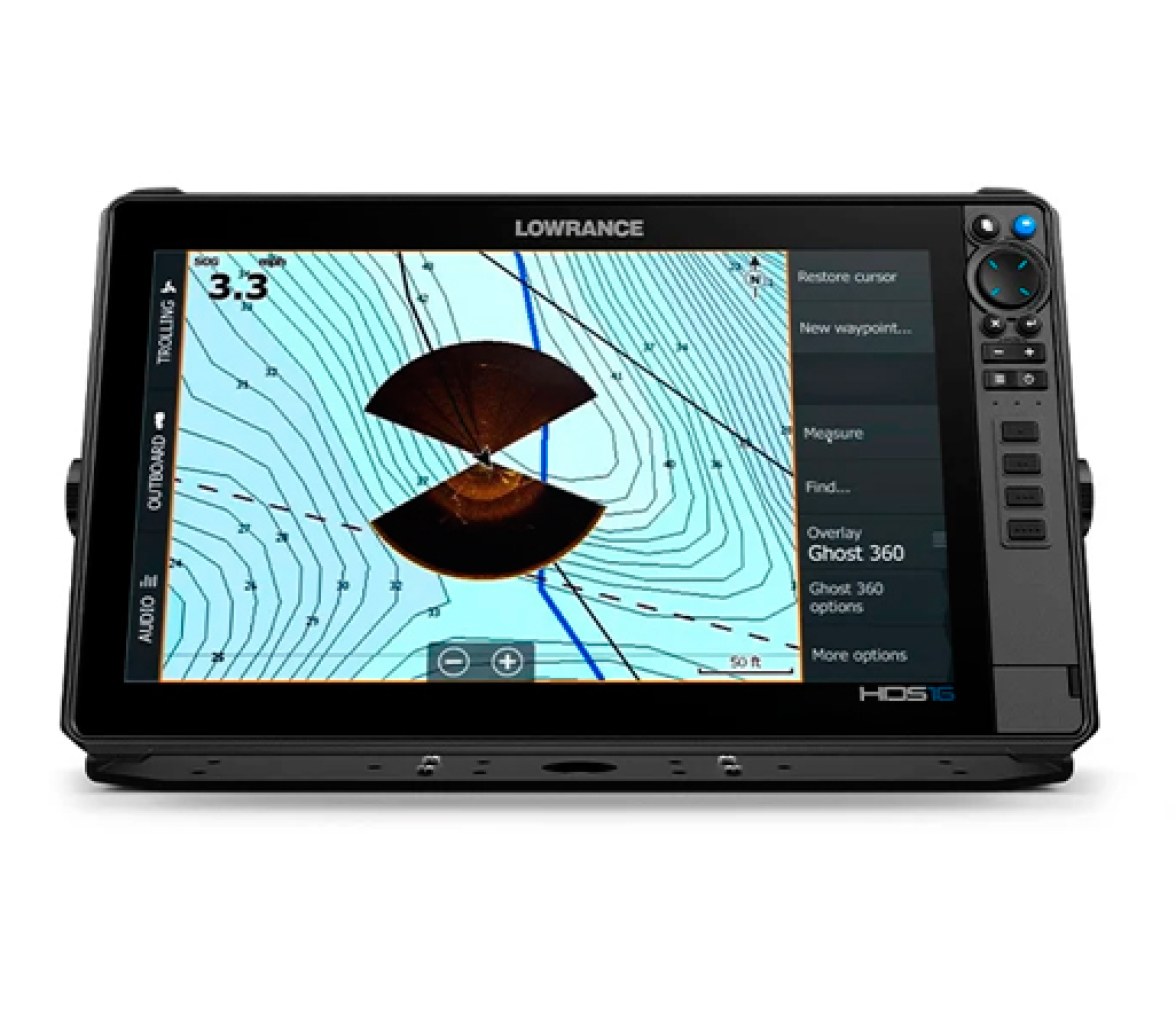

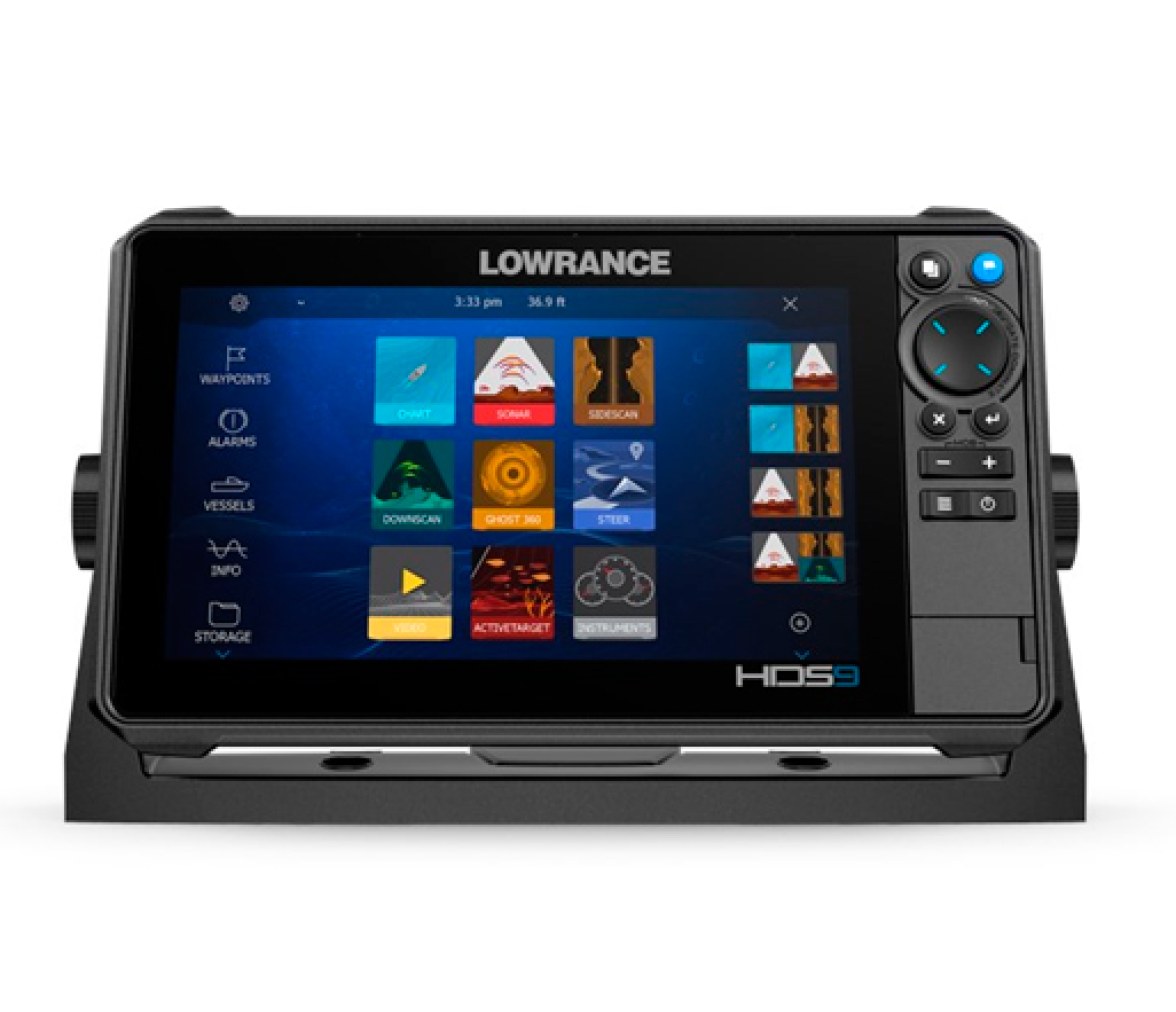

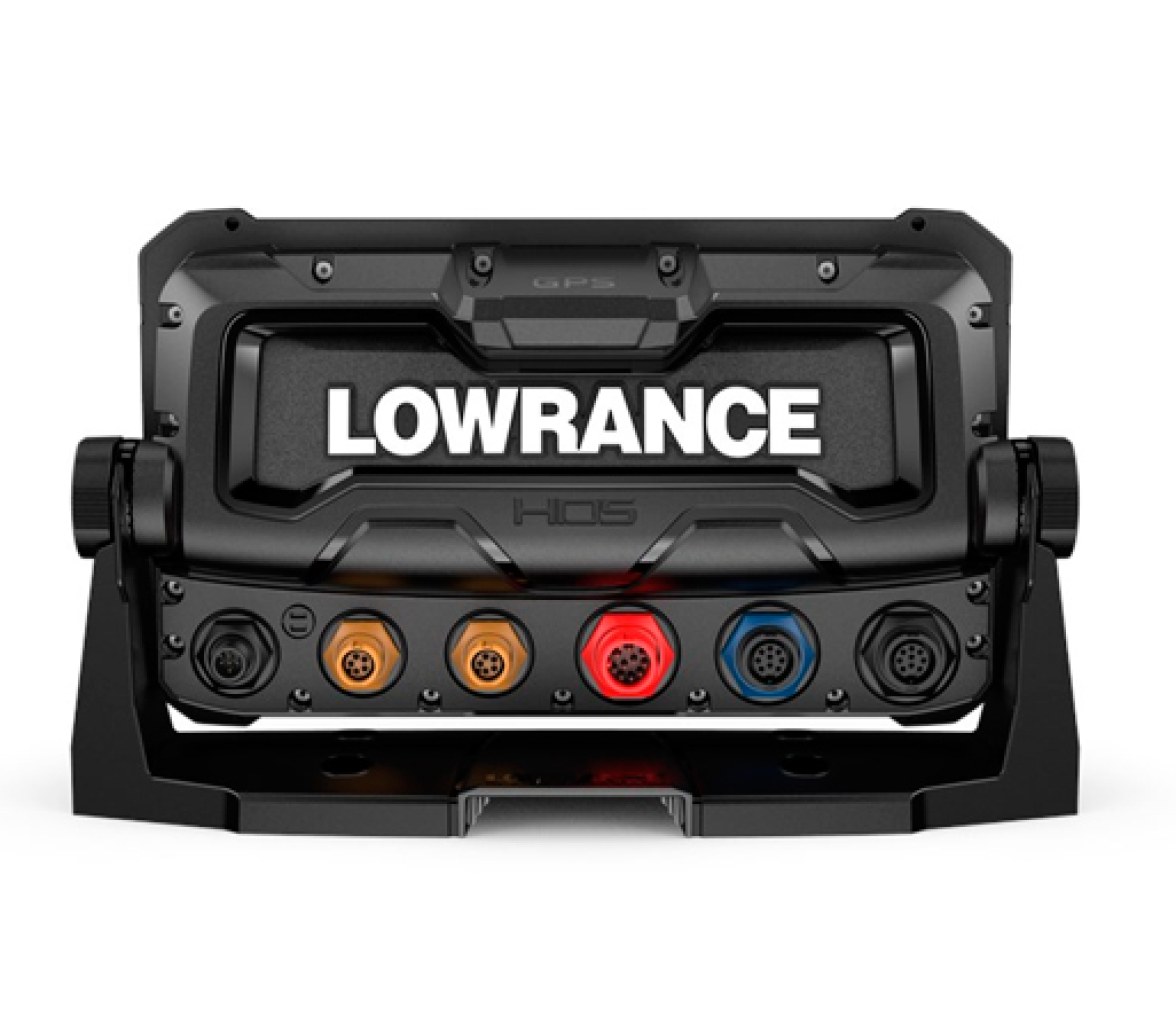

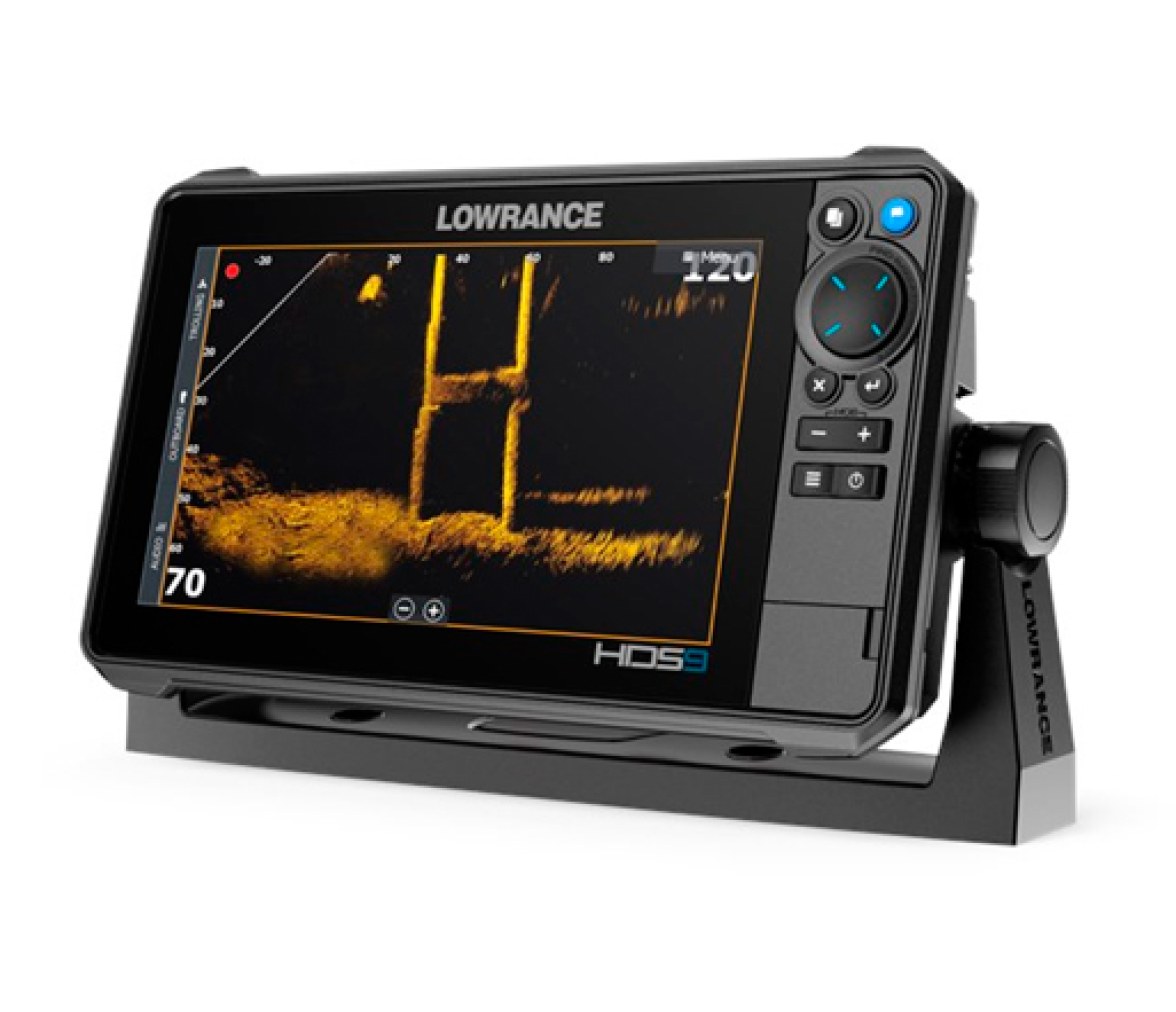

Lowrance HDS PRO 9 sin Transductor

Características:
● Pantalla táctil SolarMAX HD visible en ángulos extremadamente amplios e incluso con gafas polarizadas
● Novedad Compatible con Active Imaging HD de 1.2 MHz y alta definición (CHIRP de Lowrance/SideScan/DownScan Imaging)
● Novedad Compatible con la sonda en tiempo real ActiveTarget 2 de alta resolución
● FishReveal con nueva vista SideScan, además de DownScan
● Disponible en pantallas de 9, 10, 12 o 16 pulgadas
● Mapa mundial básico con opciones de actualización para DISCOVER y REVEAL de C-MAP u otros proveedores cartográficos.
● Disponibilidad de cartografía en tiempo real con C-MAP Genesis Live.
● Compatibilidad con las nuevas vistas de superposición de cartas de Scout de ActiveTarget y motor eléctrico Ghost 360
● Teclas programables de gran tamaño para modelos de 10, 12 o 16 pulgadas
● Control táctil de las anclas Power-Pole, el motor eléctrico Ghost, el sistema de piloto automático y el piloto fueraborda de Lowrance
● Conectividad mediante NMEA 2000 y Bluetooth e inalámbrica, además de notificaciones mediante smartphone.
● Amplio abanico de cartas opcionales, incluyendo REVEAL de C-MAP, Navionics, Florida Marine Tracks y más.
*SideScan con FishReveal requiere el módulo de sonda S3100 y un transductor relevante.

Pantalla
● Ángulos de visión: 80° top/bottom, 80° left/right
● Brillo de la pantalla: >1200 Nits
● Color de la retroiluminación: Pure White LED
● Resolución de la pantalla: 1280x720

Conectividad
● Almacenamiento de tarjetas SD: 2 micro SD cards up to 32GB
● Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
● Conectividad NMEA 2000: 1 x Micro-C
● Conectividad para PC: None
● PGN de NMEA 2000: Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
● Puertos Ethernet: 1x 100 Mbit, 6 max MFD's on a network
● Sentencias de NMEA 0183 compatibles: TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
● Vídeo: Output: NoInput: Composite video RCA - singlechannel via optional adaptor
● W- Fi para conectividad con los artículos: Internal 802.11b/g/n and Compatible with WiFi-1 Module

Cartografía
●Cartas compatibles: C-MAP RevealC-MAP DiscoverC-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners

Piloto Automático
● Modos de gobierno: CourseHeadingWaypoint Power Steer

● Patrones de giro de las maniobras: CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S

Eléctrico
● Capacidad recomendada de los fusibles: 3A
● Consumo energético máximo: 2.9A @ 13.8VDC with Full Backlight, Sonar on
● Consumo energético mínimo: 2.0A @ 13VDC withwith Full Backlight, Sonar on
● Consumo energético típico: 2.0A @ 13VDC withwith Full Backlight, Sonar on
● Tensión de alimentación: 12 v DC (10.8-17VDC)

Ambiente
● Grado de impermeabilidad: IPX7 with card door closed
● Humedad: IEC 60945Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
● Rango de temperatura de almacenamiento: 4°F to 140°F (-20°C to 60°C )
● Rango de temperaturas de funcionamiento: 5°F to 131°F (-15°C to 55°C )
● Vibración de choque: 100,000 cycles of 20 G

GPS
● Canales de receptor GPS:16
● Corrección: DGPS, WAAS
● Frecuencia de actualización: 10 Hz
● Precisión de posición: 20m RMS
● Tiempo hasta la primera reparación: 30s

Multifunción
● AIS:AIS Chart and Radar overlay. Target vessel details.
● Almacenamiento interno: 8.0 GB Internal
● Cartografía incluida: C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
● Compatibilidad con sondas: Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanActive Imaging HD DownScanActive Imaging HD ● SideScanCompatible with:ActiveTargetActiveTarget2S3100 SonarHubStructureScanStructureScanHDStructureScan3DLiveSight (requires PSI-1 module)
● Conmutación digital: CzoneNaviop
● GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
● Meteorología: SiriusXM via WM-3 (USA only)SiriusXM via WM-4 (USA only)
● Multimedia: SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
● Piloto automático: Outboard PilotNAC-1NAC-2Ghost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
● Waypoints, rutas, tracks: 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail

Características físicas
● Dimensiones (An. x Al. x Pr): 280 x 166.7 x 77.7 mm
● Peso: 1.39 kg
● Seguro para brújula: 12" (300mm)
● Tipo de montaje: Gimbal BracketFront Dash Flush MountRear Dash Flush Mount

Otros
● Idiomas: Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
● Interfaz: Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light
● Periodo de garantía: 2 Year + 3 additional years ofupgrade optionsTotaling 5 years
