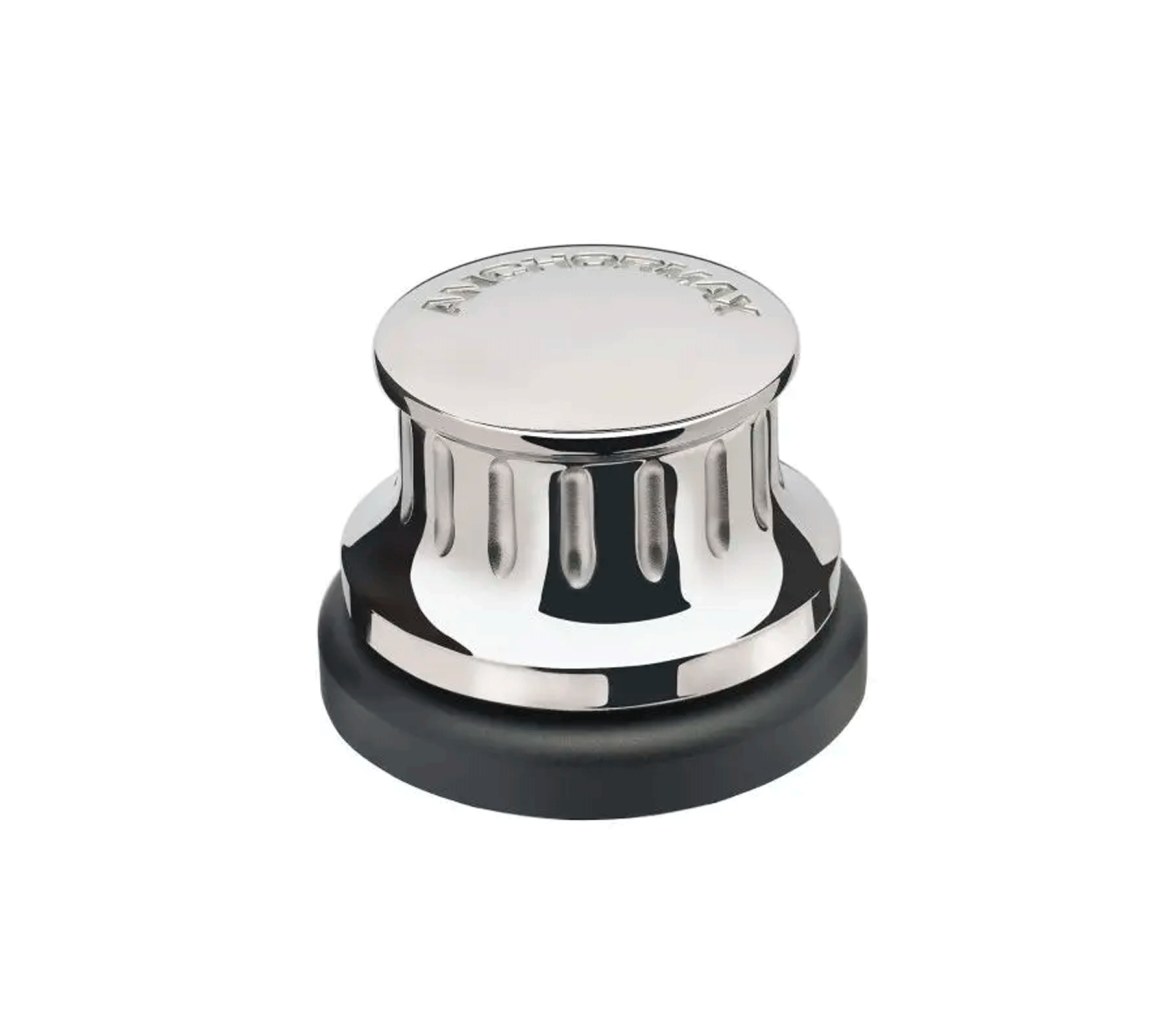

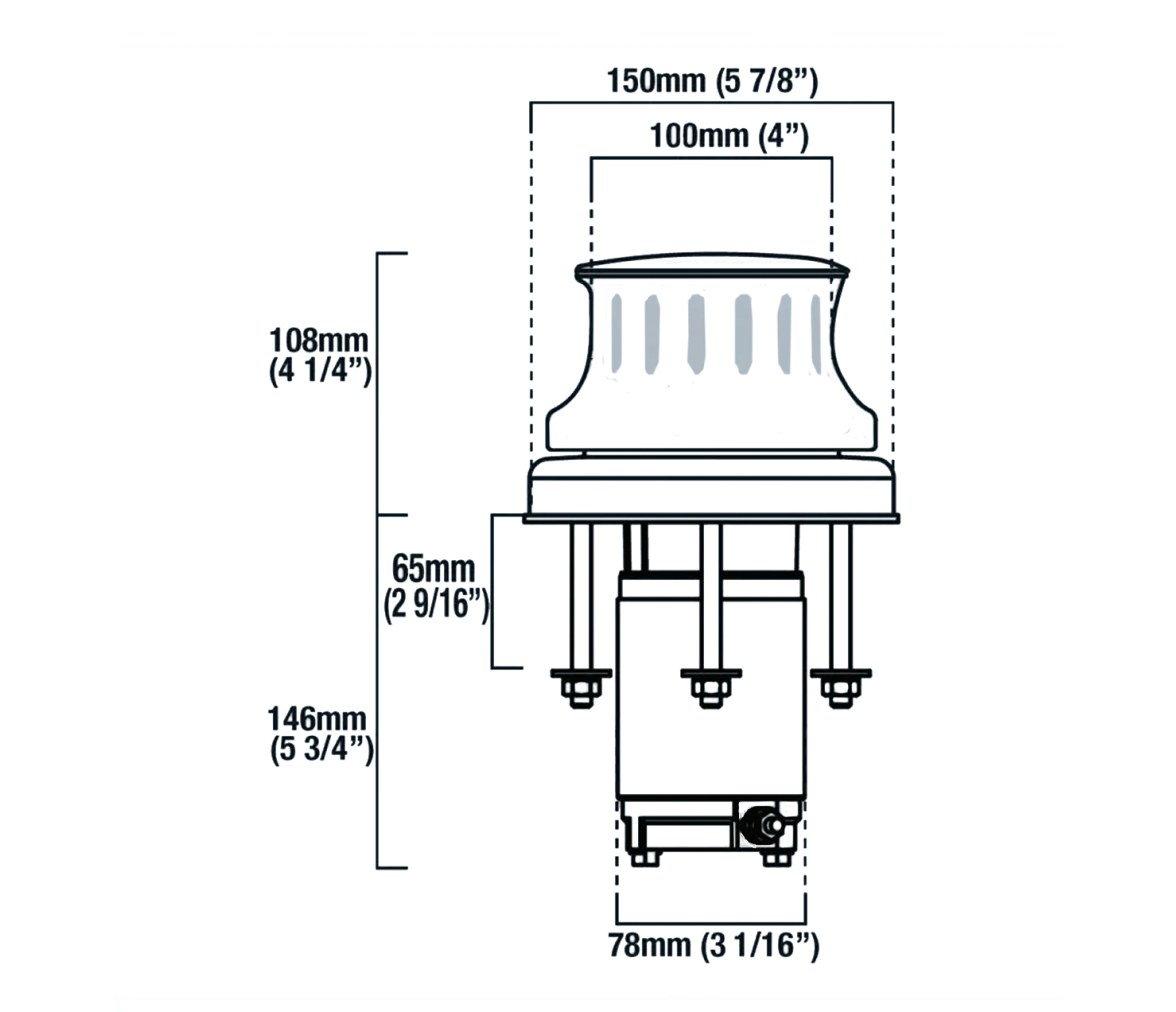

● AnchorMax – an extremely versatile winch
● Extremely versatile vertical winch or multi-purpose electric winch for use as an anchor winch, item carrier or davit winch.
● The ANCHORMAX™ has an extremely high power-to-weight ratio.

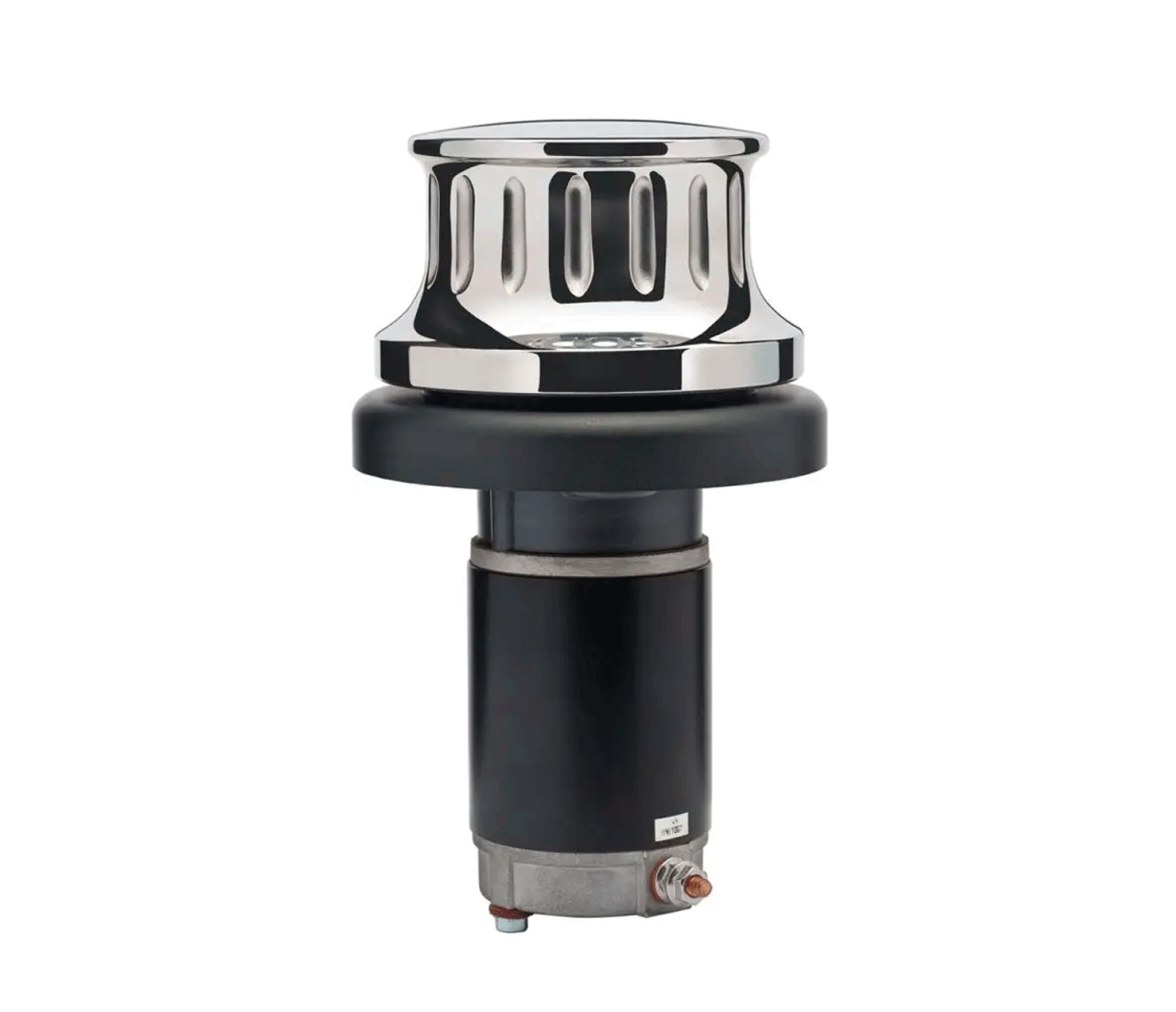

● The compact, sealed reducer is driven by a vertically mounted permanent magnet motor.
● Intrusion is minimized below deck making the design ideal for boats from 5 meters (16 feet) to 10 meters (32 feet).
● Mounting on the ship is simple in itself, since it is not necessary to dismount the winch.
● ANCHORMAX™ gearboxes are marine grade shielded and the drum is chrome plated bronze.
● Supplied as a single direction (clockwise) unit with cover switch, fasteners, template and mounting instructions.
● *Use of the ANCHORMAX™ for pulling halyards is not recommended.
● Specifications:
● Maximum pull/line lift: 330 kg

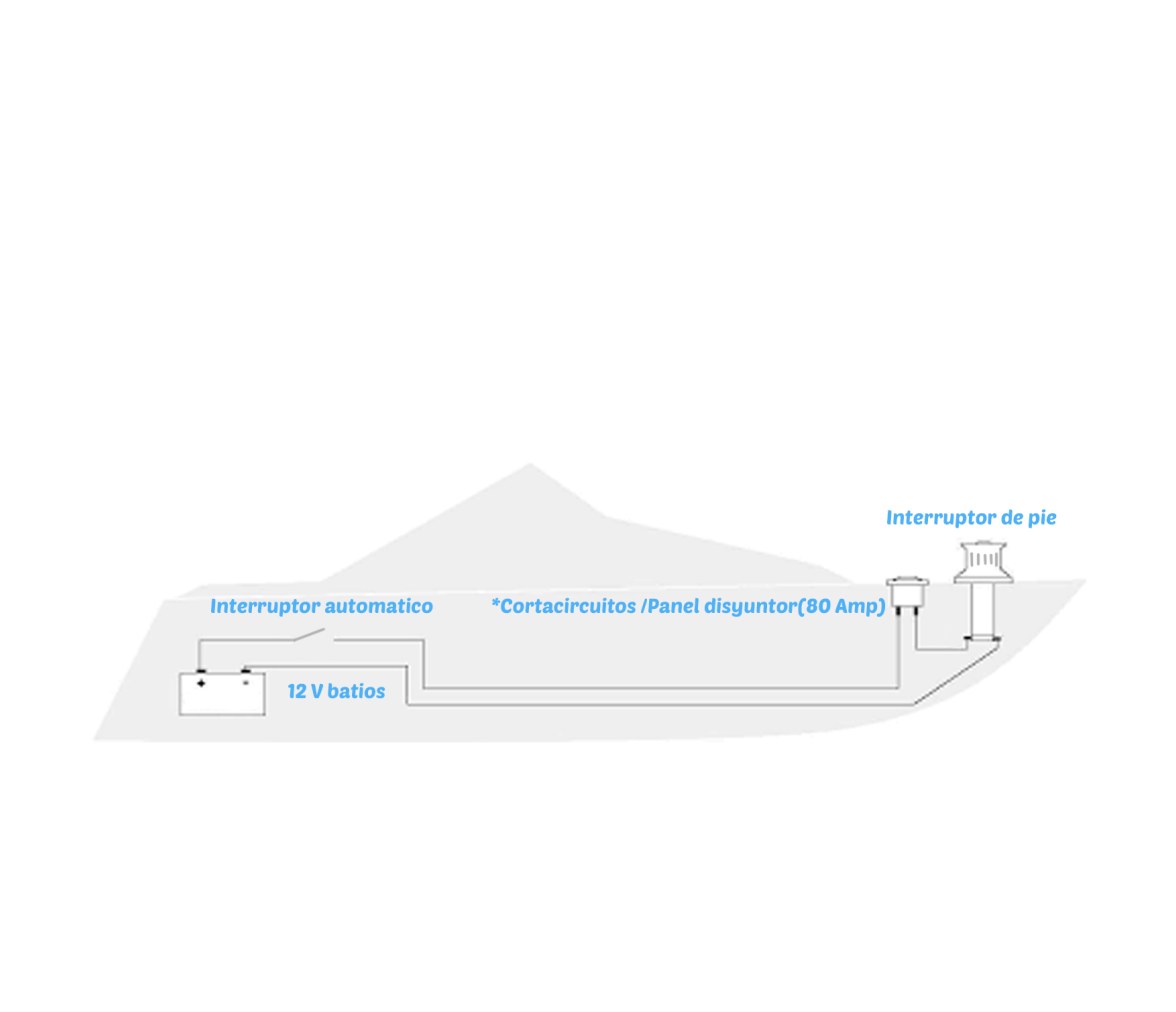

● Speed at nominal working load (80 Amps with a load of 100 kg./220 Ibs): 32 m/min
● Voltage: 12 or 24V
● Power: 500W
● Weight: 5.5kg
● Maximum boat length: 10 m (33')
● Maksimum boat Weigh: 4 tonnes
